PVC Profile Window and Door Frames Extrusion Machine

FOB Reference Price:Get Latest Price
US $30,000-45,000 / Sets | 1 Set/Sets PVC Profile Window and Door Frames Extrusion Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Profile
Plastic Processed:
PVC
Screw Design:
Double-screw
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
QIANGDA
Model Number:
SJZ-55
Voltage:
380V/220V
Power(W):
22kw
Dimension(L*W*H):
25M*2.5M*3.5M
Weight:
10T
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
PVC Profile Window and Door Frames Extrusion Machine
Inverter:
ABB
Gearbox:
DELING
Contactor:
Siemens
Air switch:
Siemens
Output capacity:
80-120kg/hr
Screw&barrel:
30CrMoAlA
Cooling way:
Recycling water
Temperature-controlled:
Japanese rkc
control:
PLC siemens
SupplyAbility
SupplyAbility:
30 Set/Sets per Year PVC Profile Window and Door Frames Extrusion Machine
Packaging & Delivery
Packaging Details
pvc profile extrusion line:film and wood base for Window and door profile plastic extruding machine.
Port
shanghai
Lead Time :
45-60 days
Video Description
Product Description

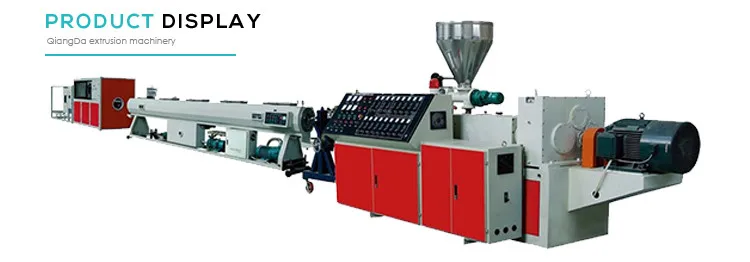

PVC profile windows and doors frames extrusion line

This production line is composed of conical twin-screw extruder, calibration table, haul-off, cutter, stacker. and also coordinated with different profile break-section and mould to produce PVC door&window profile, foamed special shaped materials, decoration plate material, profile and multi-hole wire plastic products etc.

SPECIFICATIONS FOR PVC PROFILE EXTRUSION LINE
Model
SJZ-51
SJZ-55
SJZ-65
SJZ-80
SJZ-92
Screw Dia.(mm)
51/105
55/110
65/132
80/156
92/188
Max. Rotating speed(rpm)
40
38
38
37
36
Main Motor(kw)
18.5
22
37
55
90
Capacity(kg/h)
80~100
100~150
150~250
250~380
380~700
Center height(mm)
1050
1050
1050
1050
1100
Net weight(kg)
3000
3500
4000
5600
6800
Dimension(m)(L*W*H)
3.5*1.6*2.1
4.0*1.7*2.1
4.0*1.6*2.45
5.5*1.6*2.0
6.2*1.6*2.0
Max profile width(mm)
120
180
240
400
600

Main Features

1) Different types of extruders With different sorts of molds and auxiliary machines.

2) It can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material               and granulation.

3) It can also extrude PP.PE pipe at high speed by changing special barrel.

4) Computer control or conventional control is optional.

5)According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and       material quality.

6) The screw is made by high precision special digital screw miller; extruding property can be highly harmonized.

Packing & Delivery

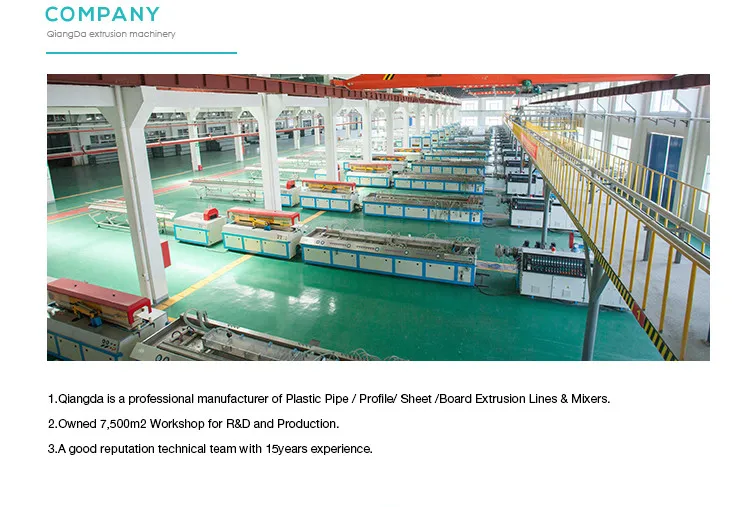

Our Company
