Best Selling PVC plastic corrugated roofing sheet machine production line

FOB Reference Price:Get Latest Price
US $85,000-95,000 / Sets | 1 Set/Sets Best Selling PVC plastic corrugated roofing sheet machine produc (Min. Order)
Model Number:
SJZ
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Sheet
Plastic Processed:
PVC
Screw Design:
Double-screw
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GR
Voltage:
380V 50HZ 3Phase(Customized)
Power(W):
150KW
Dimension(L*W*H):
20mx2.5mx2.2m
Weight:
20T
Certification:
CE ISO, Any the customer need
After-sales Service Provided:
Engineers available to service machinery overseas, Engineers available to service machinery overseas
Name:
Best Selling PVC plastic corrugated roofing sheet machine production l
Raw material:
PVC
Warranty:
1 Year
Usage:
Roofing Sheet
Type:
Tile Forming Machine
Color:
Client's Request
Feeding Width:
850 960 mm
Thickness:
0.3-0.8mm
SupplyAbility
SupplyAbility:
40 Set/Sets per Year Best Selling PVC plastic corrugated roofing sheet machine produc
Packaging & Delivery
Packaging Details
Film or wooden case packaged for Best Selling PVC plastic corrugated roofing sheet machine production line.
Port
Shanghai Port
Lead Time :
2 months

The PVC Corrugated Roof Tile Production Line adopts the regular plastic sheet co-extrusion technology. Special designed forming mould and couples with unique durable formula ensure the final products with below features.

  1. The line adopts conical twin-screw extruder;
  2. Guide for formulation and raw material purchasing can be provided;
  3. Low production cost and excellent product function;
  4. Single layer or A+B/A+B+C/A+B+A multi-layer tile can be chosen;
Product Description

Best Selling PVC plastic corrugated roofing sheet machine production line

Our PVC Corrugated Roof Tile Production Line equipped with coat hanger flat die and a pneumatic shaping mould, this line has a more stable shaping process and more easily adjustable for the thickness control. Using rubber hauling roller matched with the waveform of sheets, it provides more smooth traction. PVC Corrugated Roof Tile Production Line’s automatic angular cutter ensure the cutting section tidy. PVC Corrugated Roof Tile Production Line can be cut by metering length.VC and ASA or PMMA compound roof tile production line consists of conical double screw extruder SJZ80/156, single screw co-extruder, extruding tool, calendar, forming machines for main tile and ridge tiles, haul-off, cutter, stacker; Twin-screw extruder is a high efficient compounding extruder. It has small shear rate, not easy to decompose, uniform plasticizing and compounding, high productivity, good quality, good self cleaning, long using life.


Best Selling PVC plastic corrugated roofing sheet machine production line

Material of synthetic resin roof tile is PVC and ASA . PVC has the performance of corrosion resistance by itself.And ASA is a kind of super high anti-weathering engineering resin material which has great performance of anti-uv,with ASA coated,color of roof sheet can last for more than 20 years,and lifetime can reach 50 years!

This tile is the best replacement to conventional asbestos, metal G.I. sheets and PVC sheets considering the heat insulation, sound insulation, water resistance, chemical and alkali resistance, corrosion proof, fire retardant, Eco-friendly, easy to install and move, light weight as well as cost effective in installation (as less steel and less overlap), as per the efficiency and benefits it provides.

The tile can save construction cost up to 50% and has captured many international certifications for its genius properties.


Application

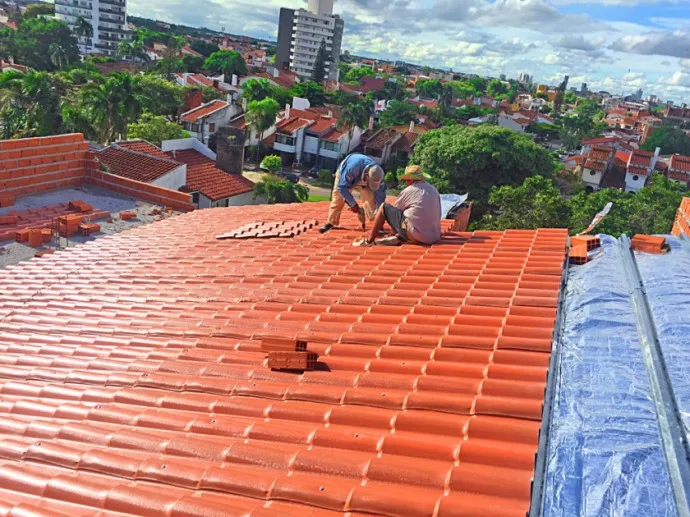

The tile’s range of application is wide: workshop, warehouse, vehicle shed, agricultural fair, wall, temporary retail shop, heating insulation shed and so on.
