SPC Flooring Powder High Speed Mixer

  • >=1 Sets
    US $65000.00
Model Number:
SRL-Z800-2500
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Homogenizer
Product Type:
SPC Flooring Powder High Speed Mixer
Application:
Powder
Additional Capabilities:
Milling
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
StarsPlas
Max. Loading Capacity:
800kg/h
Voltage:
380V 50HZ 3OPhase
Power(W):
110kw
Dimension(L*W*H):
1950*1600*1800
Certification:
CE UL
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Product Name:
SPC Flooring Powder High Speed Mixer
Function:
Mixing raw material
Supply Ability
Supply Ability:
5 Set/Sets per Year
Packaging & Delivery
Packaging Details
SPC Flooring Powder High Speed Mixer For Wooden Case.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(day) 90 To be negotiated
Product Description

Product Application

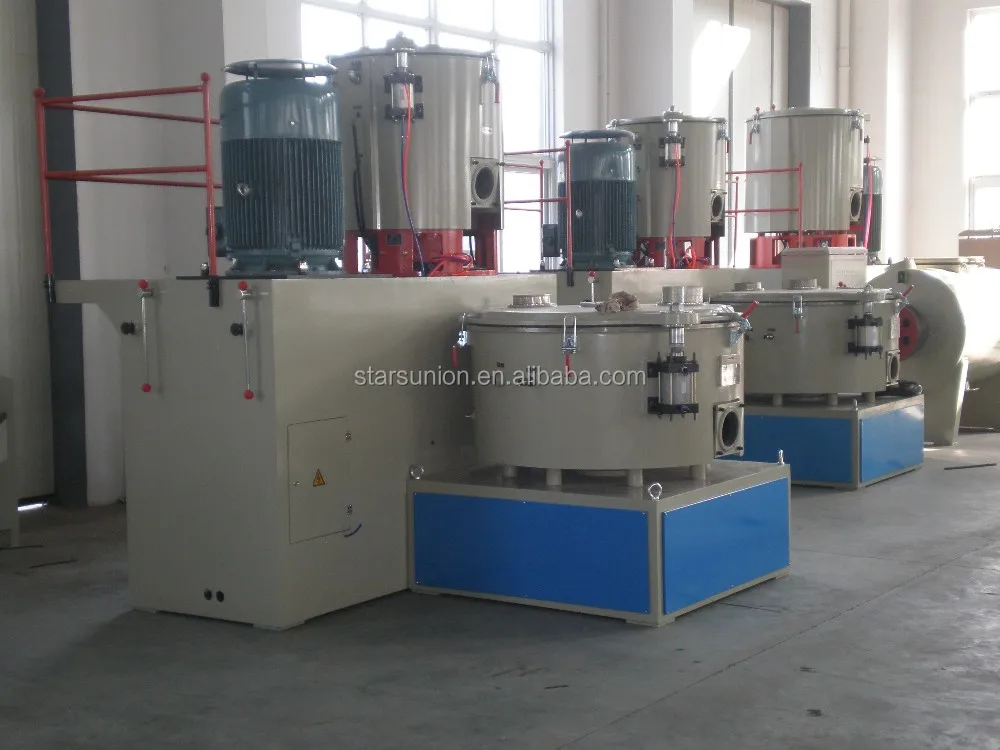

High speed mixers are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.

SPC Flooring High Speed Mixer
High Speed
Cooling Mixer
Total Volume
800L
Total Volume
2500L
Effective Volume
600L
Effective Volume
1850L
Motor
110kw Siemens Motor
Motor
22kw Siemens Motor
Max.Loading Capacity
280-350kg/batch
Rotating Speed
100-120rpm
Rotating Speed
700rpm(adjustable)
Cooling time
4-6min/batch
Thickness of the Wall
16mm(8mm S.S.304 + 8mmQ235A), Others only use 10mm
Cooling Method
Circulating water in water jacket, with Chiller better
Thickness of the Base cone
25mm(1Cr18Ni9Ti), Others only use 14mm
Thickeness of the Wall
12mm(6mm S.S.304+6mmQ235A), Others only use 10mm
Type of mixing blade
Linear 3-layer, S.S.304
Thickness of the Side Plate
20mm(1Cr18Ni9Ti),Others only use 15mm

Main Features

1. The mixer is used in mixing, drying, colouring and other industrial art, It is an ideal equipment for profile and pipes.

2.Its heating mixer has function of self-friction and electric heating.

3.Dual-sealing is adopted in producing the pot cover. Cooling mixer use arched pot cover for avoiding distortion.

4.It has features of compact structure and good looking appearance.

5.All the paddles has passed the test of static and dynamic equilibrium.
