SPC Flooring Slotting Machine

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $258000.00
Key Company Capacity
Research & Design >
  • No.of R&D Engineer: 11 - 20 People
Trade Capacity >
  • Export Percentage: 51% - 60%
  • No. of Employees inTrade Department: 6-10 People
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
StarsPlas
Voltage:
380v 50hz 3phase
Power(W):
275kw
Dimension(L*W*H):
6*7*2m
Weight:
15ton
Certification:
CE UL
Warranty:
1 year
Product Name:
SPC Flooring Slotting Machine
speed:
25-50m/min
height of pallet:
500-1000m
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
SPC Flooring Slotting Machine for Wood Case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(day) 60 To be negotiated
Video Description
Product Description

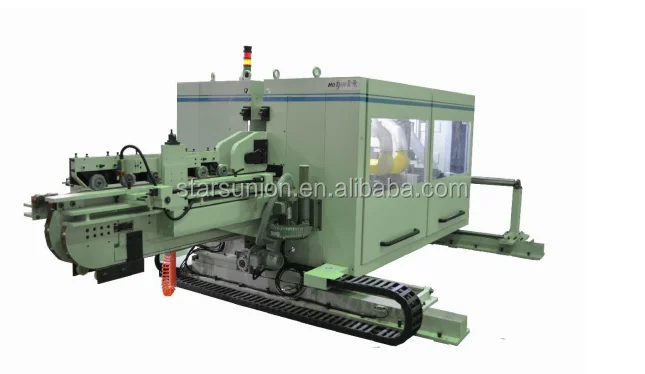

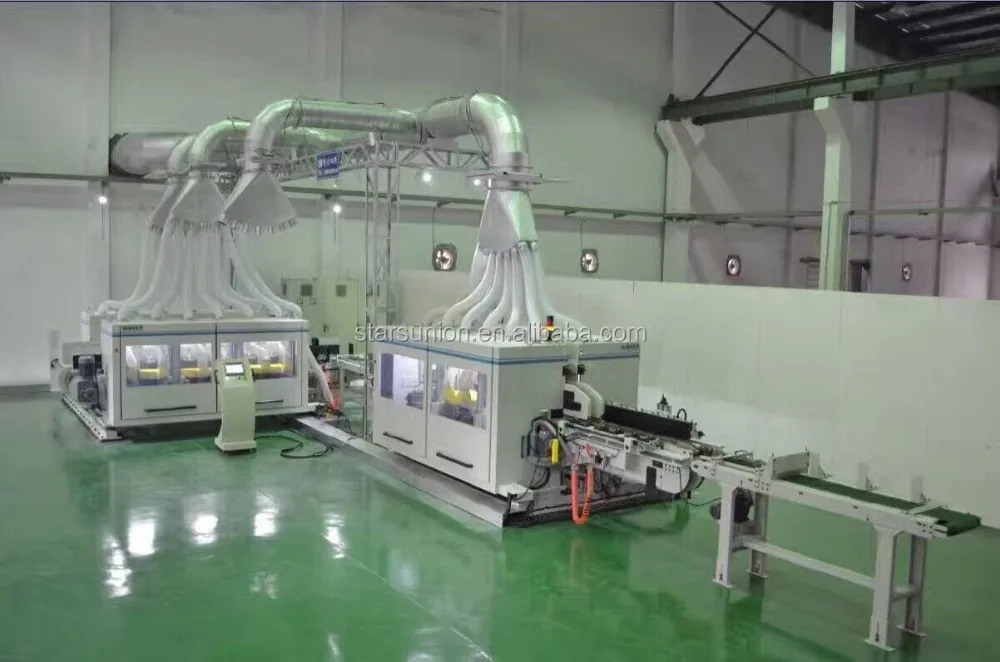

SPC Flooring Slotting Machine

Flooring production line Hotjin FPR, it adopts the whole frame structure, upper pressing belt use active, stable performance and reliable quality, this machine process capability is improved greatly.

SPC Flooring Slotting Machine
Item
Parameter
The height of pallet
500-1000mm
Air pressure requirement
0.6-0.8Mpa
Compressed air quantity
100m³/h
Total power of the whole line
275kw
Finished Floor Size Area
Item
Parameter
Length
950, 1220mm
Width
125-200mm
Thickness
4-15mm

Process:

1. put the big board on the feeding roller conveyor by labor,

2. Transport board to longitudinal multi rip saw, cut middle board into many pieces small board.

3. Feed small boards on the longitudinal belt conveyor.

4. Process click profile (groove and tongue) by longitudinal and transverse DET.

5. Package the floor into the box by labor

Certifications
Detailed Images

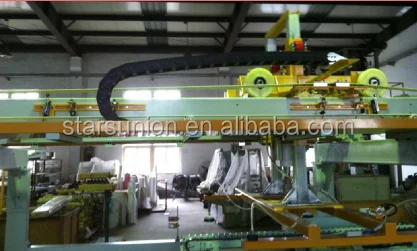

Automatic Vacuum Sucker Loader

Reciprocatin Frequency: About 10 times/min(adjustable)

Working Cycle Setting up:  Available

Position Setting up: Available

Monitor and Controlling System: PLC




Verical Cutting Machine

Feeding motor power: 1.5kw

Speed: 10-30m/min

The spindle motor power: 15kw

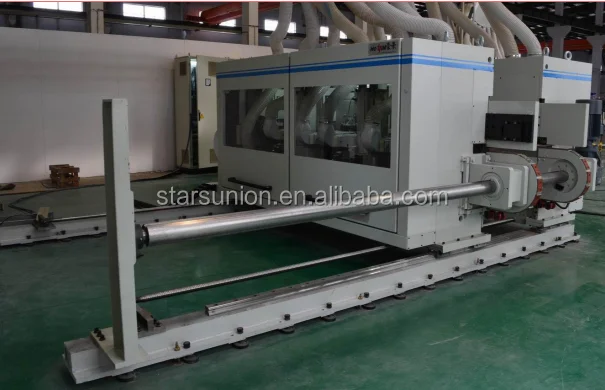

Vertical Slotting Machine

Feeding motor power: 7.5kw

Speed: 50-80m/min

The 1st 2nd 3th station spindle motor power: 8kw x 6

The 4th 5th station spindle motor power: 5.5kw x 4

Longitudinal double end tenoner capacity: About 60pcs/min standard board, standard board size 5x150x1220mm, 0.18㎡ each piece




Horizontal Slotting Machine

Feeding motor power: 4kw

Speed: 25-50m/min

The 1st 2nd 3th station spindle motor power: 5.5kw x 6

The 4th 5th station spindle motor power: 3kw x 4

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
