SPC Flooring UV Coating Machine

  • >=1 Sets
    US $75000.00
Model Number:
JZ-1300#
Report Suspicious Activity
Overview
Quick Details
Type:
Coating Machine
Condition:
New
Application:
Machinery & Hardware
Automatic Grade:
Automatic
Driven Type:
Mechanical
Voltage:
380v 50hz 3phase
Power:
163.27kw
Packaging Type:
Cans
Packaging Material:
Wood
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
StarsPlas
Dimension(L*W*H):
25m*2.5m*3.5m
Weight:
10ton
Certification:
CE UL
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
SPC Flooring UV Coating Machine
Warranty:
1 Year
Function:
Smooth
Cooling type:
Air cooling
Supply Ability
Supply Ability:
10 Set/Sets per Year
Packaging & Delivery
Packaging Details
SPC Flooring UV Coating Machine for Wooden Case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(day) 60 To be negotiated
Detailed Images

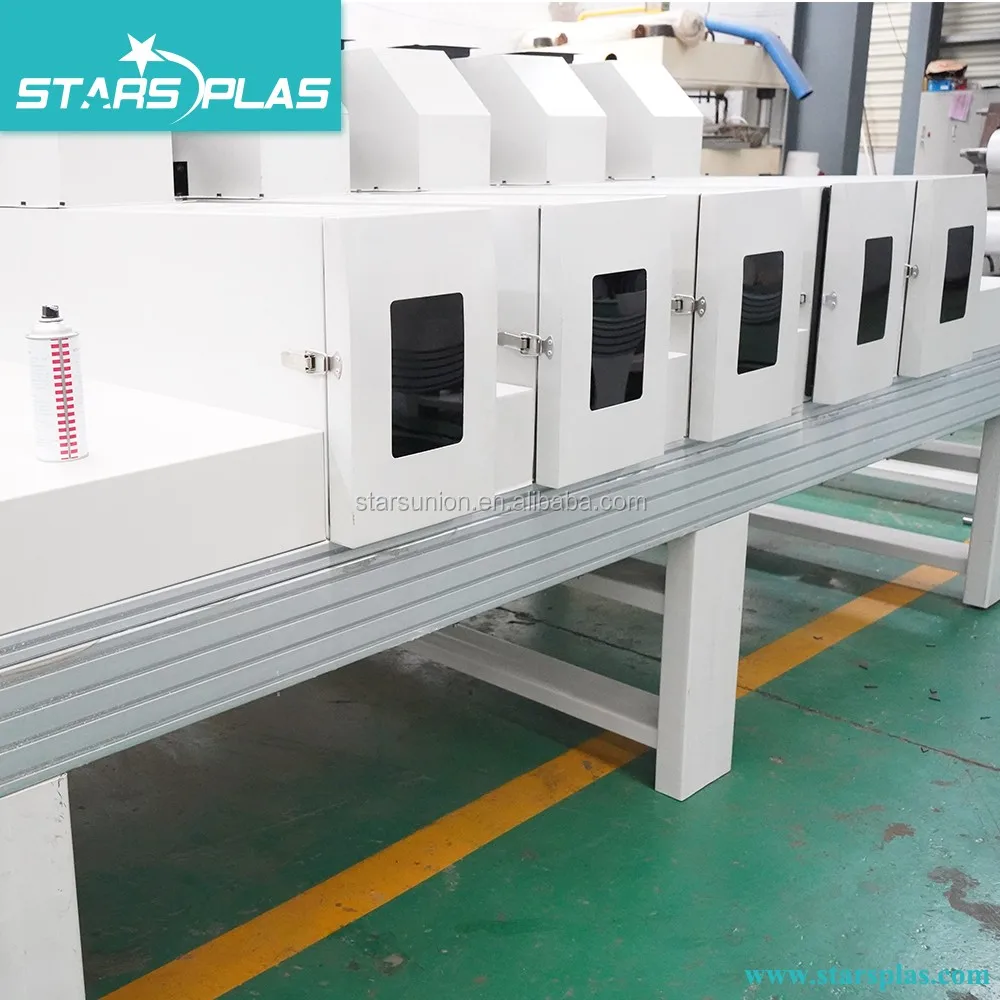

Five Lamps UV Drying Unit


UV box material: 1.5mm cold rolled plate

Blower: 1.1kw x 5pcs

UV lamp quantity: 3pcs

Transformer quantity: 5pcs

UV lamp and transformer total power: 9.6kw

Motor: 0.75kw RV worm wheel speed reducer


Single Roller Coating Unit


Belt thickness: 3mm

UV roller material: Steel core of 45# seamless steel tube(wrapped with UV rubber)

Calculating roller adjustment: Use hand roller to connect or leave

Varnish running box and groove material: 1.2mm thick cold plate



Five Meters Leveling Machine


Belt thickness: 3mm

Heating tunnel material: 1.5mm thick cold rolled plate

Heating power: 1kw x 9pcs

Leveling machine: 4 pcs

Cycloidal-pin speed reducer power: 1.5kw


Conveyor

Frame and brace material: Steel channel

Conveying belt thickness: 3mm

Supporting panel thickness: 1.2mm

Speed control: Transducer

Chain wheel: 45#steel

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

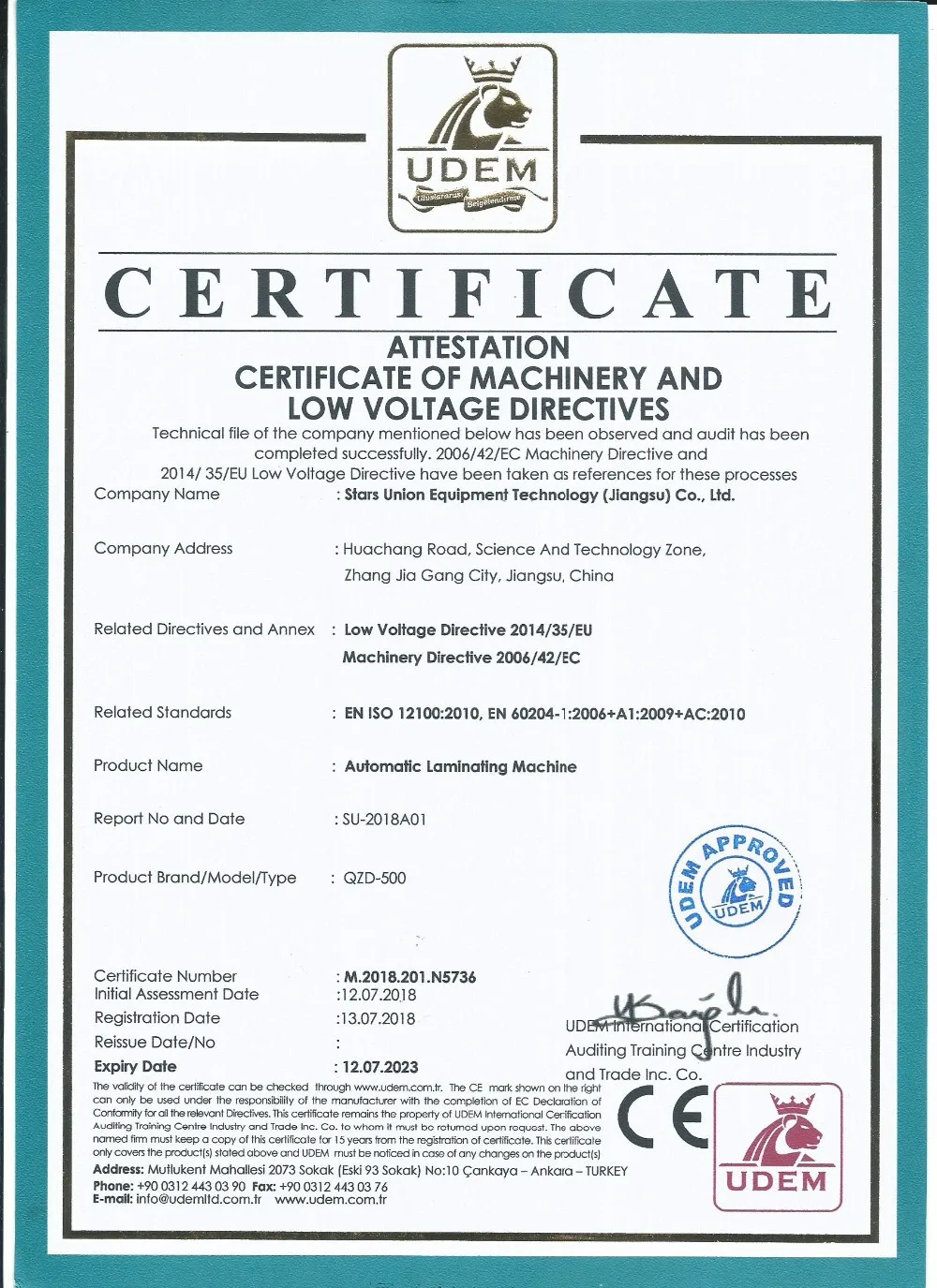

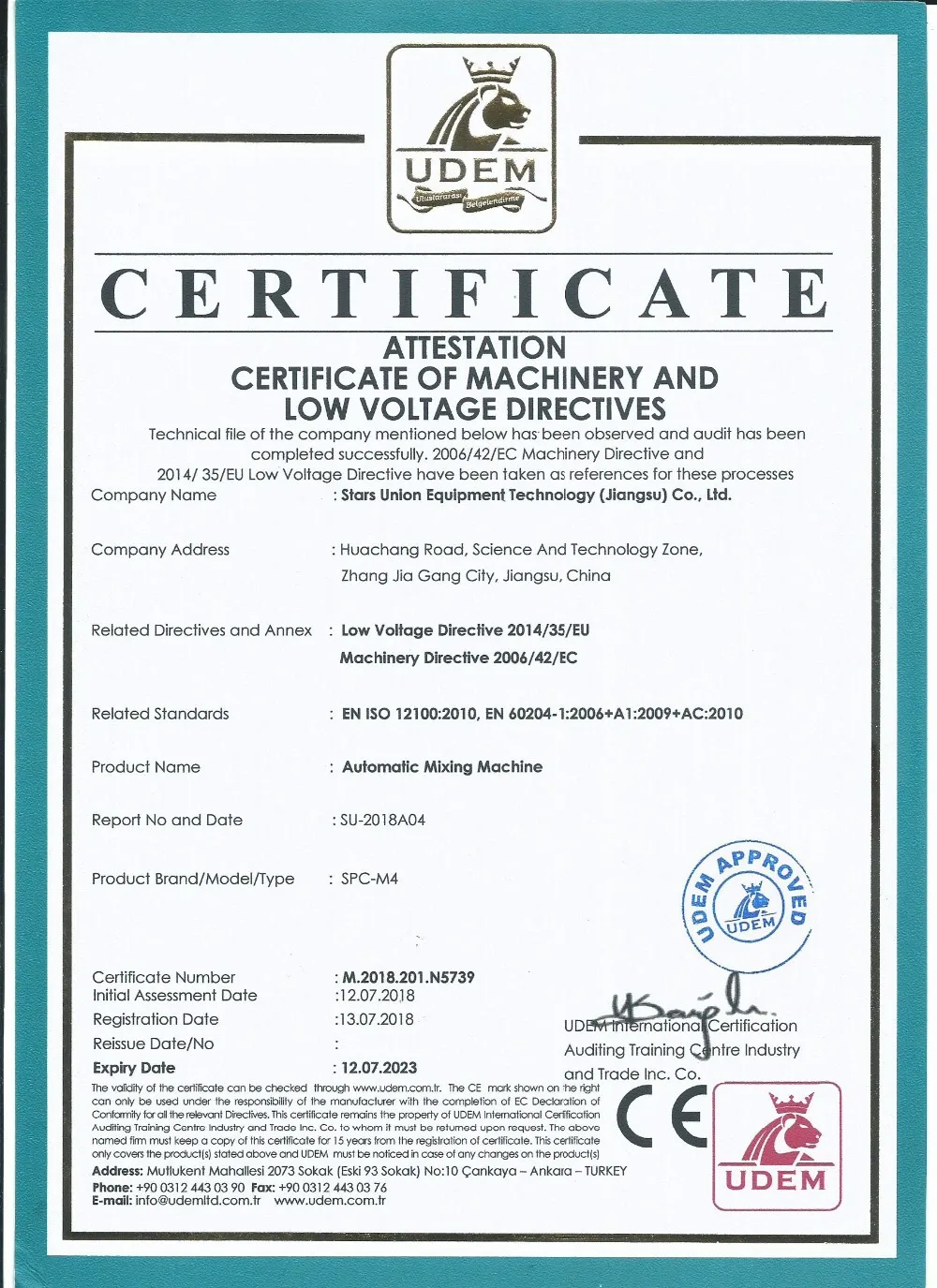

Certifications
Packing & Delivery
Packaging
Packaging
