SPC Flooring Extrusion Line

  • >=1 Sets
    US $135000.00
Model Number:
SJSZ-92
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Sheet
Plastic Processed:
PVC SPC
Screw Design:
Double-screw
Automatic Grade:
automatic
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
StarsPlas
Voltage:
380v 50hz 3phase
Power(W):
180kw
Dimension(L*W*H):
38m*3m*3m
Weight:
5000kg
Certification:
CE UL
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
SPC Flooring Extrusion Line
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
SPC Flooring Extrusion Line Packed by Wooden Case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(day) 60 To be negotiated
Video Description
Product Description

Product Application

SPC Vinyl Flooring Extrusion Machine from StarsPlas is advanced in skill and high automation. The base material extrusion, wood grain embossing, color film, wearing film, underlying fiberglass soft silencing layer laminating or heat transfer printing can be finished the same time in the SPC Vinyl Flooring Making Machine.

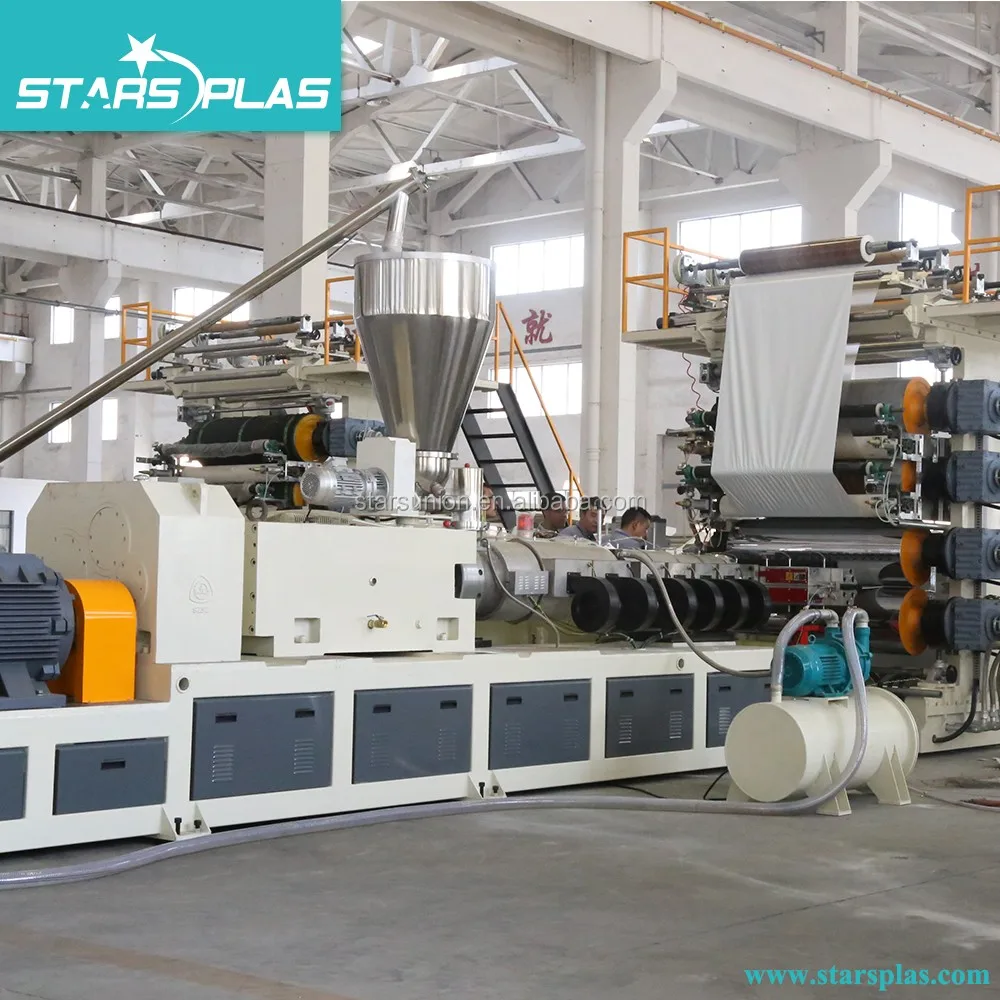

SJSZ-92 SPC Flooring Extrusion Machine
NO.
Machine Name
Qty.
1
SJSZ92/188 Conical twin-screw extruder
1 set
2
Hanger plate mold
1 set
3
Four-roll calender
1 set
4
Cooling bracket + trimming device
1 set
5
Four-site coating + correction device
1 set
6
Traction machine
1 set
7
Precision cutting plate machine
1 set
8
Feeding device
1 set

Main Features

1. The screw adopt the design of special mixing material function and high plasticization capacity. This guarantee the uniformity of plastic melting, coloring and the high output.

2. Clothes rack type mould head adopt double throttling design, which make the more precision of adjusting the thickness of sheet.

3. The ±1℃ precision degree of temperature control can control the plasticization precess, thickness and surface smooth of sheet accurately.

4. The arrange of roller can be vertical , horizontal or free adjusting type, which can give more selection basing on different thickness of sheet.

5. The screw adjusting and oil pressure press-roller double direction adjusting can control the thickness of sheet accurately.



Rigid Core Flooring is extruded by extruder and T-die extrusion PVC substrate, with three-roll or four-roll calender, respectively, PVC wear layer, PVC color film and PVC substrate, one-time heating paste, embossed products , The process is simple, close by heat to complete, do not need glue.

Certifications
Detailed Images



Machine Parts

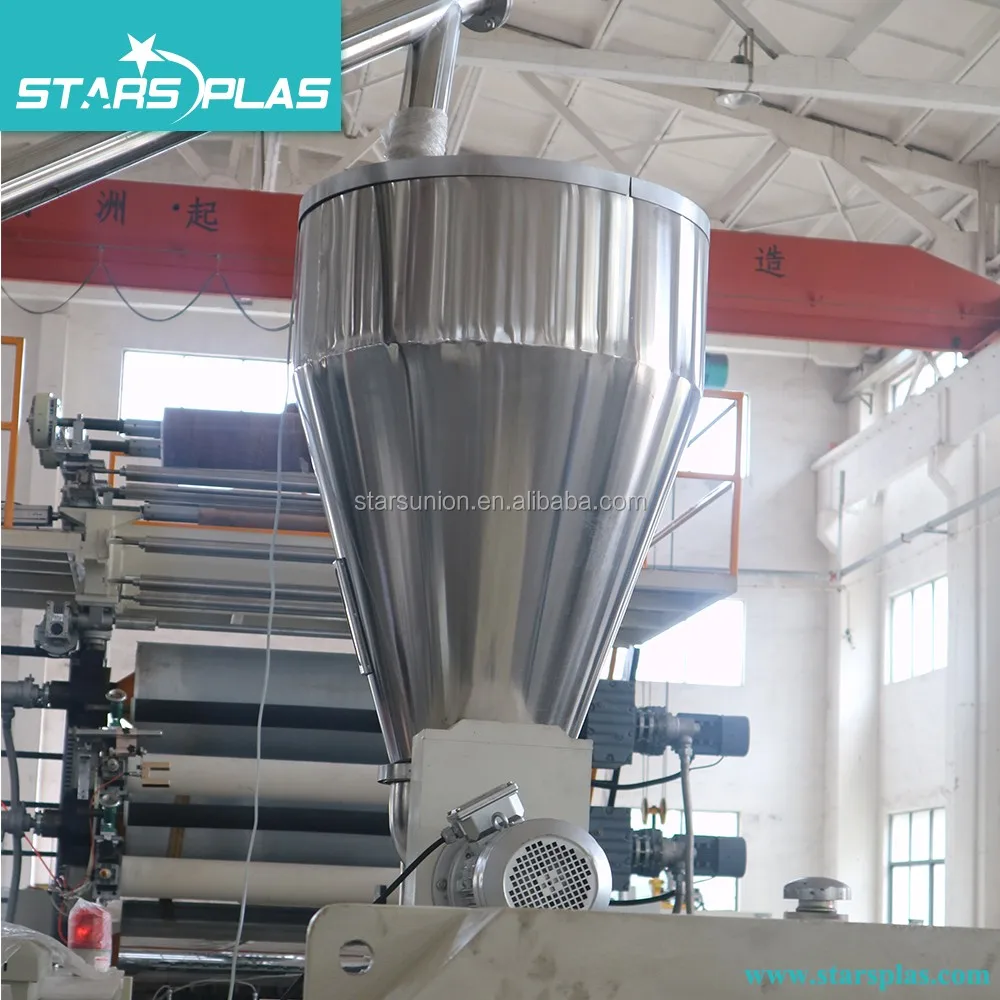

Name: Loading Hopper

Feeding power: 1.5kw with VSD controller

Level Sensor: 2pcs, linked with Alarm



Main Features

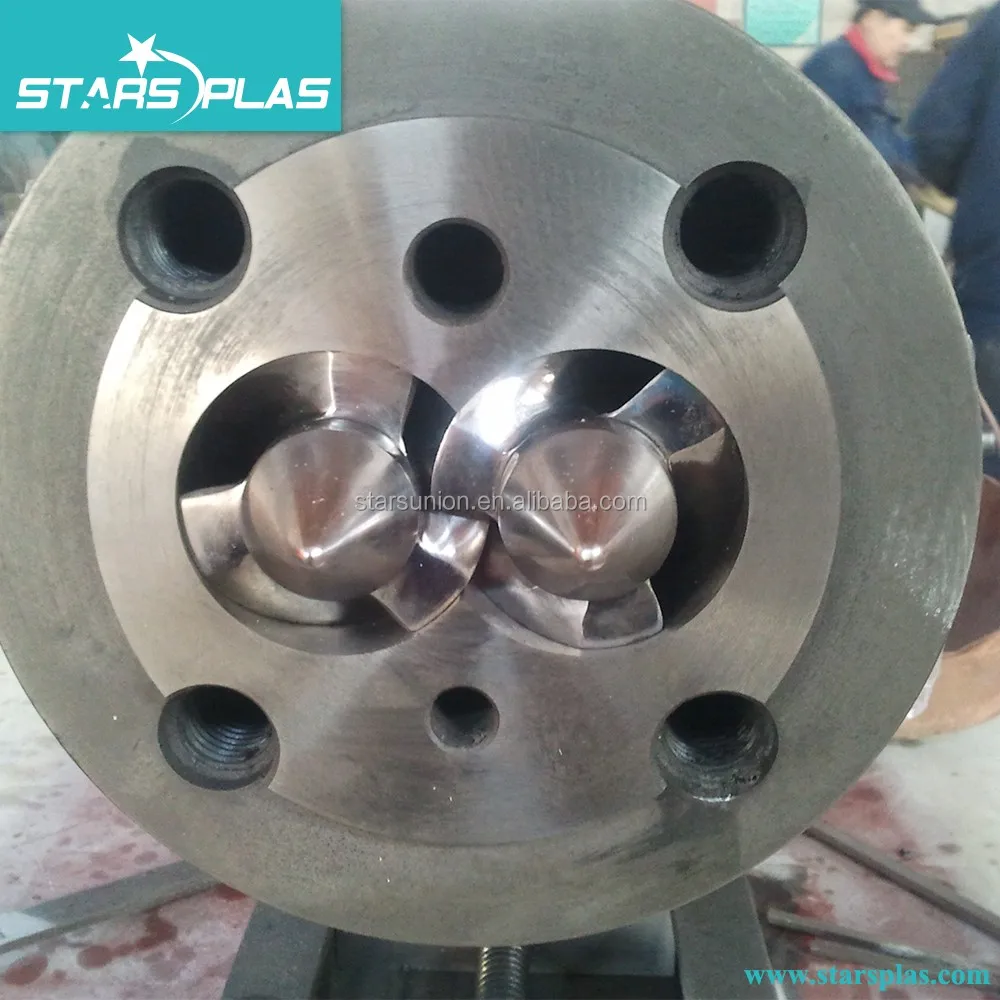

Name:  Screw
Material:  38CrMoAIA
Diameter: 92/188
Effective length: 2500mm

Quantity: 2pcs

The rotation speed: 1-35±3 rpm



Machine Parts

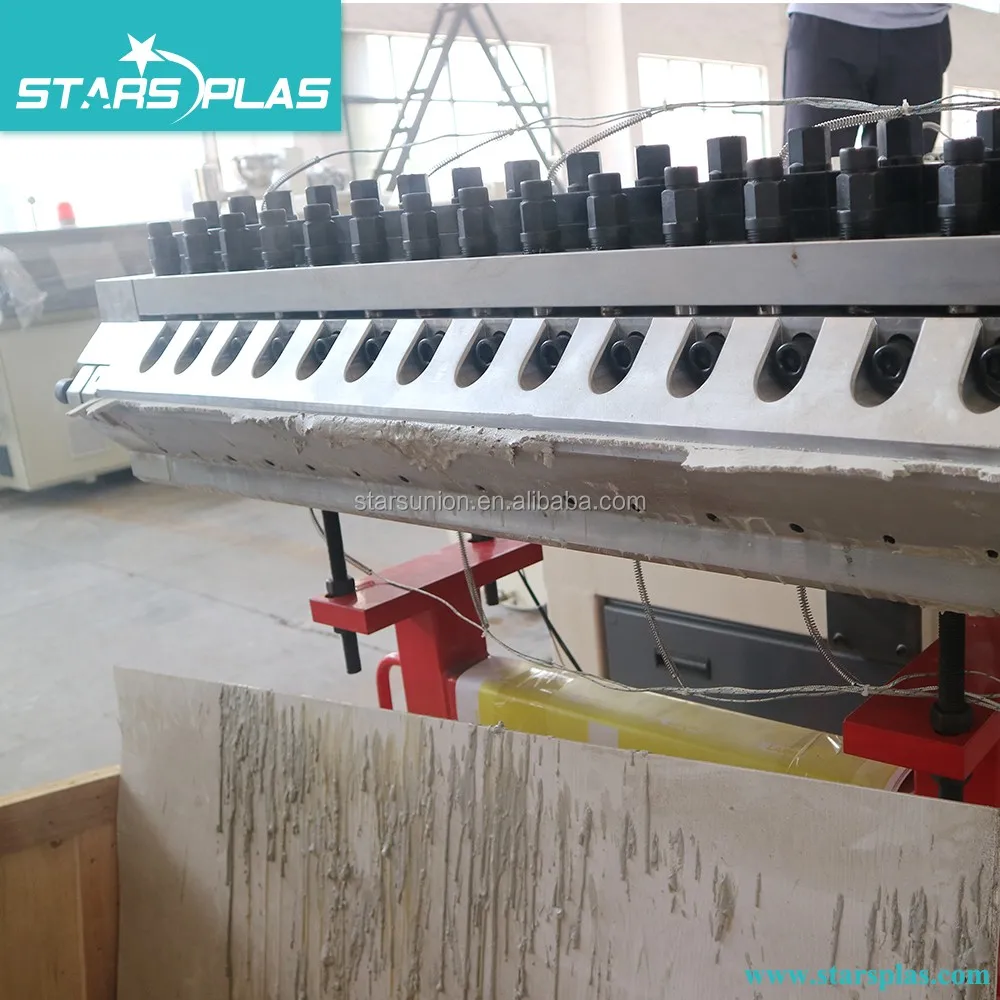

Name: Extrusion T-Die Mould
Width:  1320mm
Thickness adjustable: 2-6mm
Die heater: 9kw x 1

Temperature Range: 25-160℃


Main Features

Name:  4-roller Calender System
Roller Diameter: φ450mm
Roller Length:  1500mm
Chromium coating: 0.08-0.12mm

Roller Gap Controlling: Independent

Speed range(m/min): 0.2-2m/min

Reduce power(kw): 0.75kw

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
